Description

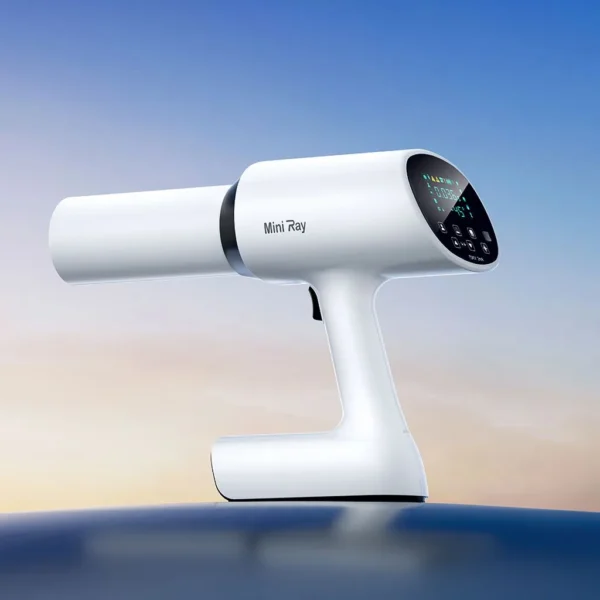

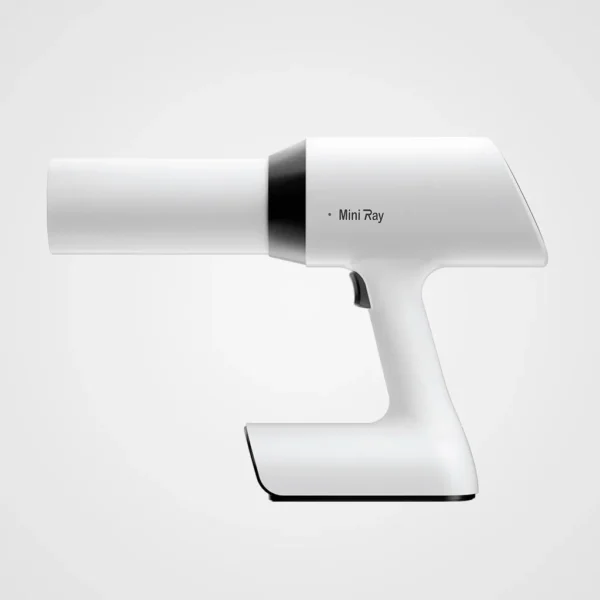

Woodpecker Mini Ray Portable X-Ray Machine is an advanced X-ray imaging device designed for optimal safety and efficiency. Complying with international standards, it ensures double radiation protection, with minimal leakage from the body surface, thanks to 99.9% pure lead shielding in the oil tank and beam limiter. Its versatile capabilities include a 50k tube wattage, 2mA tube current, and 140W output power, catering to diverse clinical needs. Powered by a long-lasting 1800ml x 35 lithium battery, it offers 506 shots on a full charge and a rapid 2-hour full charge time. Equipped with a USA angle sensor, it provides real-time display and calibration options for shooting angles, ensuring accurate X-ray images. The device is user-friendly, featuring a 2.8″ HD digital screen, intuitive interface, and compact design for easy one-hand operation. With upgraded protection mechanisms, including a fast screen lock and automatic exposure cancellation, Mini Ray stands out as a durable, dependable, and high-performance high-frequency DC X-ray machine, setting new standards in the field.
Fratures:
Radiation Protection:
Complies with international standards.
Radiation leakage ≤ 0.05mGy/h (CE safety standard).
99.9% pure lead shielding in the oil tank and beam limiter.
Efficient Shooting:
50k tube wattage for enhanced penetration.
2mA tube current for precise exposures.
140W output power for diverse clinical needs.
Powerful “CHIP” Technology:
Advanced chip for stable output.
Mitigates low battery impact on image quality.
Long-lasting Battery:
1800ml x 35 lithium battery.
506 shots on full charge.
2-hour fast full charge.
Accurate Imaging Sensor:
USA angle sensor for real-time display.
Shooting angle calibration based on posture
Durable Build:
60,000+ exposure times.
High-frequency X-ray tube for extended service life.
Focused Imaging:

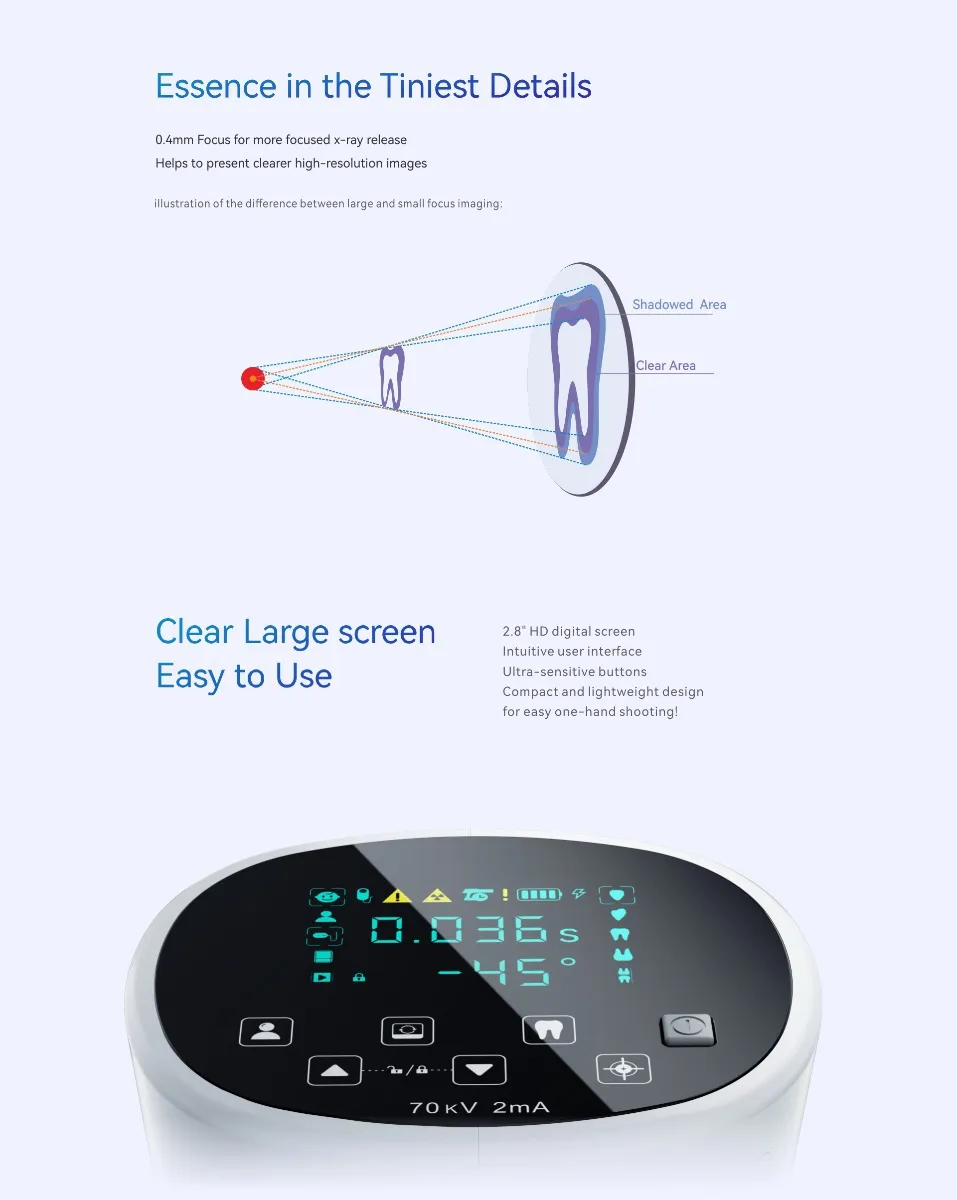

0.4mm focus for clear high-resolution images.
User-Friendly Design:
2.8″ HD digital screen.
Intuitive interface, ultra-sensitive buttons.

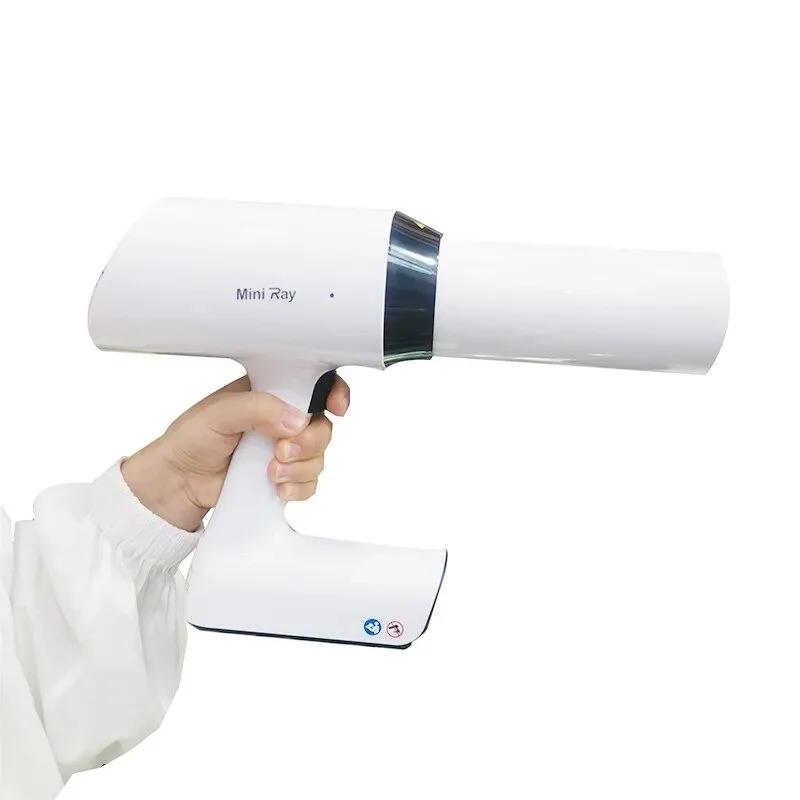

Compact and lightweight for one-hand operation.

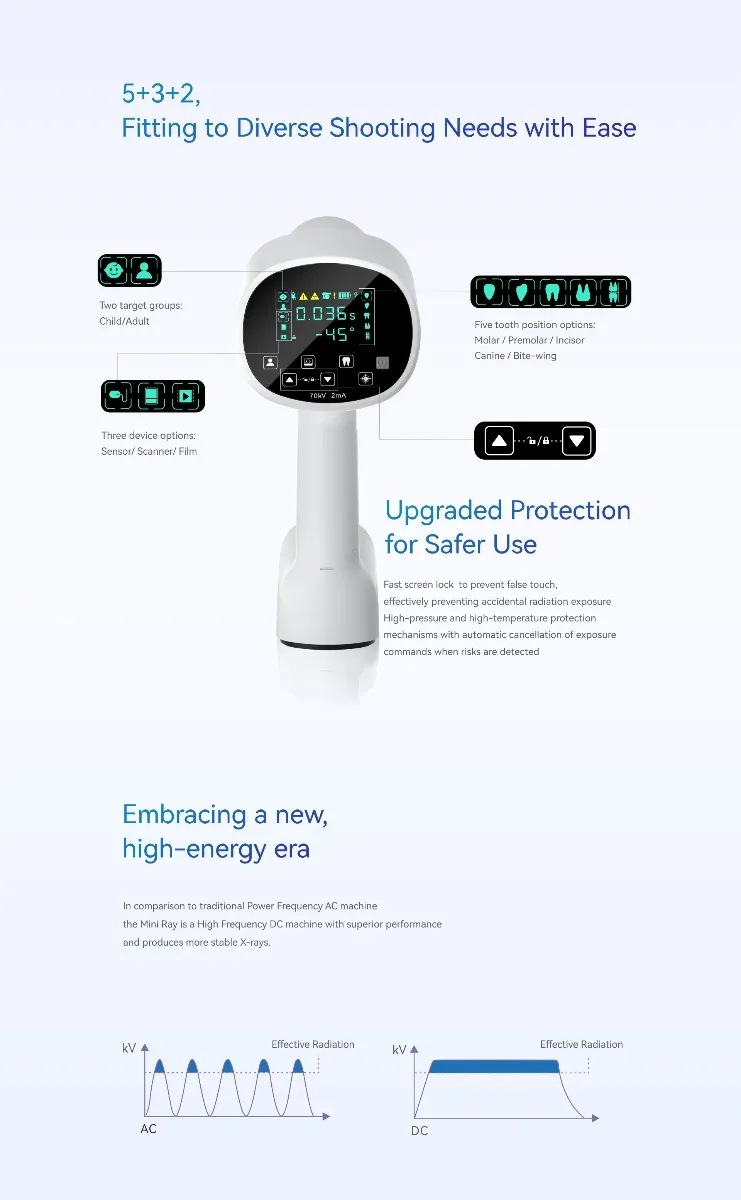

Adaptable to Diverse Needs:
Two target groups: Child/Adult.
Three device options: Sensor/Scanner/Film.
Five tooth position options.
Upgraded Safety Measures:
Fast screen lock to prevent false touch.
High-pressure and high-temperature protection.
Automatic exposure command cancellation.
High-frequency DC Machine:
Superior performance, stable X-rays.
Specification :Â
Parameters:-
Tube voltage: 70kV
Tube current: 2mA
DC high frequency:-
Battery capacity: 2500mAh 3S
Size/mm 338*112*247
Weight: 2.2Kg
Direction of Use:
Power On/Off:
Ensure the device is charged.
Press and hold the power button to turn it on/off.
Select Patient Type:
Choose between Child and Adult modes based on the patient.
Choose Imaging Mode:
Select the desired imaging mode: Sensor, Scanner, or Film.
Set Tooth Position:
Pick the tooth position option: Molar, Premolar, Incisor, Canine, or Bite-win
Position the Device:
Place the Mini Ray at the appropriate distance from the target area.
Adjust Shooting Angle:
Use the USA angle sensor for real-time angle display.
Calibrate the shooting angle based on patient posture.
Focus Adjustment:
Ensure the 0.4mm focus is aligned for clear, high-resolution images.
Review Safety Measures:
Confirm the fast screen lock is activated to prevent false touches.
Be aware of high-pressure and high-temperature protection features.
Initiate Exposure:
Press the exposure button to capture the X-ray image.
Review Image:
Check the 2.8″ HD digital screen for the captured image.
Ensure image quality meets expectations.
Power Management:
Monitor battery level regularly.
Recharge promptly using the provided charger when needed.
Shutdown:
After use, power off the Mini Ray and store it in a secure location.
