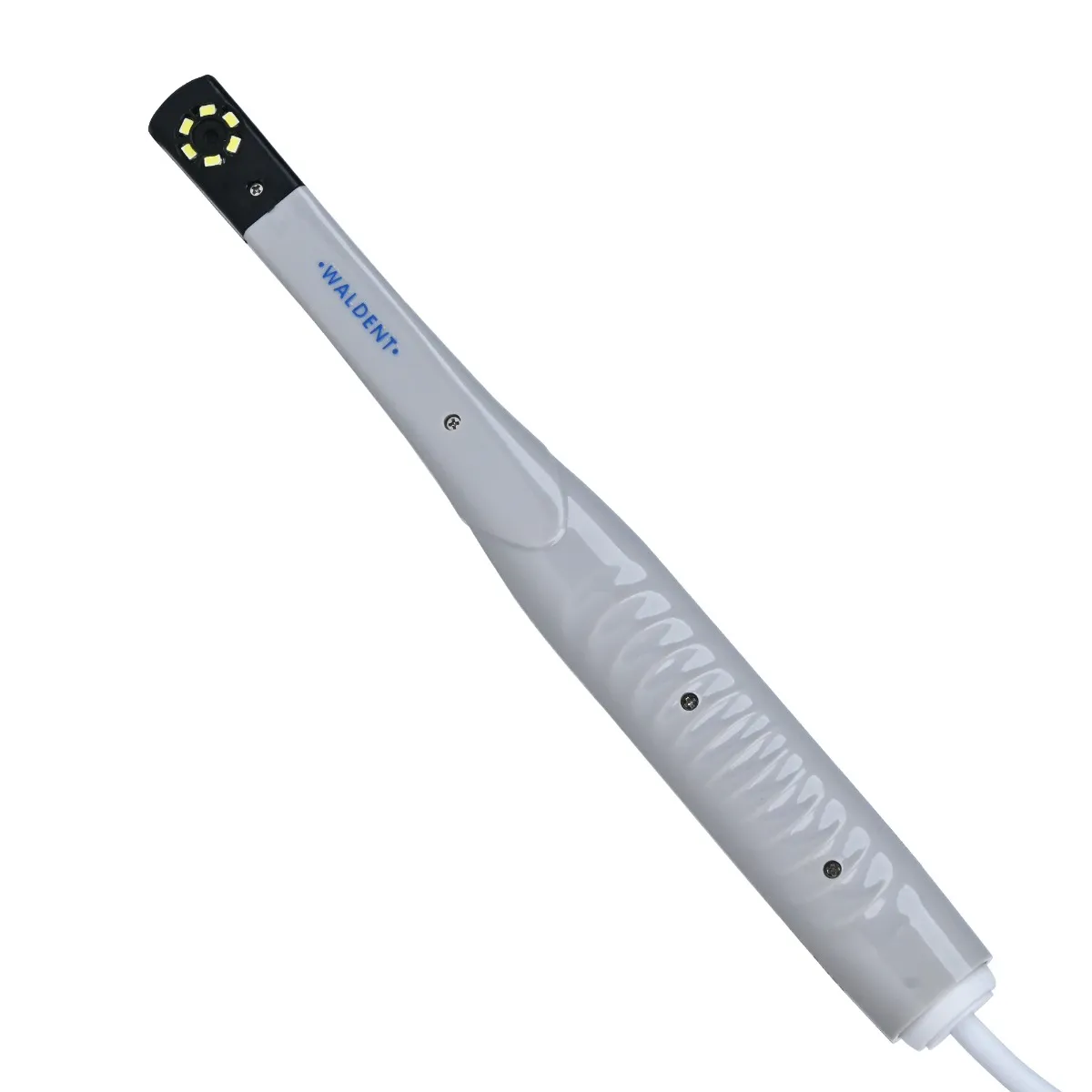

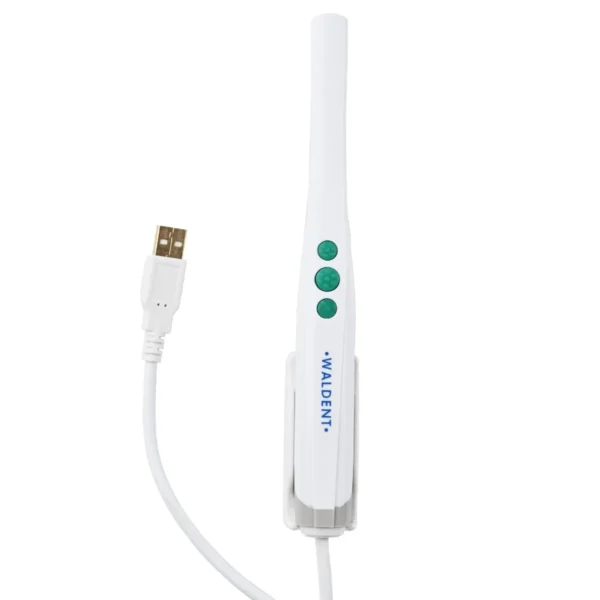

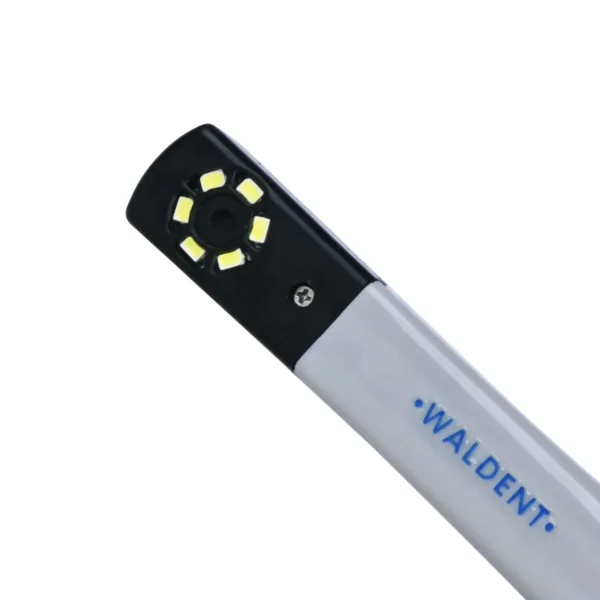

Waldent Intraoral Camera USB Model

Description

For Laptop 5 Megapixel Intraoral Camera with 6 LED Lights for Oral diagnosis & treatment planning.

Waldent Intraoral Camera USB Model is designed to allow clinicians to capture and display digital images from inside a patient mouth, intraoral cameras are a valuable tool for patient education and case documentation. Shaped like a small wand, these intraoral cameras are highly portable and easily connect to a computer, or laptop. For effective relationships between dentists & patients, the image quality has been enhanced making it much easier for the dentists to explain the oral health problems or oral pathologies with the patients. The specially designed intraoral camera is one of the best choices in the field of Dentistry.

INDICATION –

Oral diagnosis & treatment planning.
Click Here to Download the Software

ADVANTAGE –

Simple, light, streamlined appearance.
Compatible with Laptop.
Split design, easy to clean and disinfect.
Plug and play facility available.
Dustproof, high-brightness LED light.
Image Clinic button available.
CMOS Sensor.
Auto – Focus & Wide Field Coverage.

ADVANTAGES OF USING AN INTRA-ORAL CAMERA :

The images captured by intraoral cameras are used to accurately visualize problems with teeth and/or tissues, including fractured teeth or restorations, carious lesions, plaque buildup, and bleeding or inflamed tissues.
With the intraoral camera’s technology, dentists and their patients can collaborate on the right treatment plan to achieve optimal oral and dental health.
Dental patients are now able to view potential problems along with our doctors while their treatment progress is effectively monitored.
It Provides Sequential photos of the treatment to effectively document our patient’ compliance and improvement in their oral health.
With the use of the intraoral camera, doctors can examine the oral cavity for any precautionary symptoms that may indicate a health risk.
The intraoral images captured by the camera closely illustrate the diagnoses and allow dentists to explain further to patients how to proceed with oral health treatment.
This also allows dental care/oral health care providers to effectively demonstrate consequences to patients if the condition is left untreated.
Intraoral images can be printed out for patients to take home.
Patients can then take time to consider the proposed treatment plan and hopefully become more motivated to improve their oral health.
Some intraoral software programs allow images to be modified in real-time to illustrate proposed esthetic changes prior to altering the tooth structure.
Images can be sent electronically to dental laboratories for a more accurate color match in veneers, crowns, and/or fixed partial dentures.
Note: Please update the windows of the laptop before installing the software.

Software Link:- Click here to download the software

Features :

OPTIMIZED ERGONOMICS:

Ergonomically designed intraoral camera with LED lights for perfect analysis of intraoral cavity.
AUTOMATIC FOCUSING AND MAXIMUM FIELD COVERAGE:

Waldent intra-oral camera focuses on every detail of the intraoral cavity for better diagnosis & treatment planning covering a large area at a time.
FEATHER TOUCH BUTTONS:

The button of the intra-oral camera are feather touch & very smooth in use.

Specification :

PARAMETERS :

Image Sensor: CMOS 1/4
Focus Range: 5mm – 50mm
Backup Mode: Backup to PC automatically
Operating System: Windows & Android
System Operation: Key Control
Picture Storage Format: JPG
Megapixel: 5
USB Cable Length: 2 Meters

Direction to Uses :

To Download The Software Please Follow The Link:

https://s3.ap-south-1.amazonaws.com/dentalkart-media/Intraoral/Dental+Usb.zip

Key 1: Take the picture.

Key 2: Turn on the light (Short press), Turn off the light (Long press)

Software Installment :

Put the CD into the ROM.
Open the file to install the software of Dental USB.
Double-click “Dental USB”, and click “Yes” to continue the installment.
Start to install software.
When finished installment, the icon will appear.
Connect the USB camera to the computer.
Start to use Software :

Double-click the Dental USB icon to open the software, and click the middle of the picture to enter the “customer info” menu.
Add: Press to create customer file.
Search: search file record.
Exit: Press to exit the software.
Click to choose the picture size.
Click to set the parameter of video or camera.
After connection, click “OK” to start the check-up.
