Alerio Neo

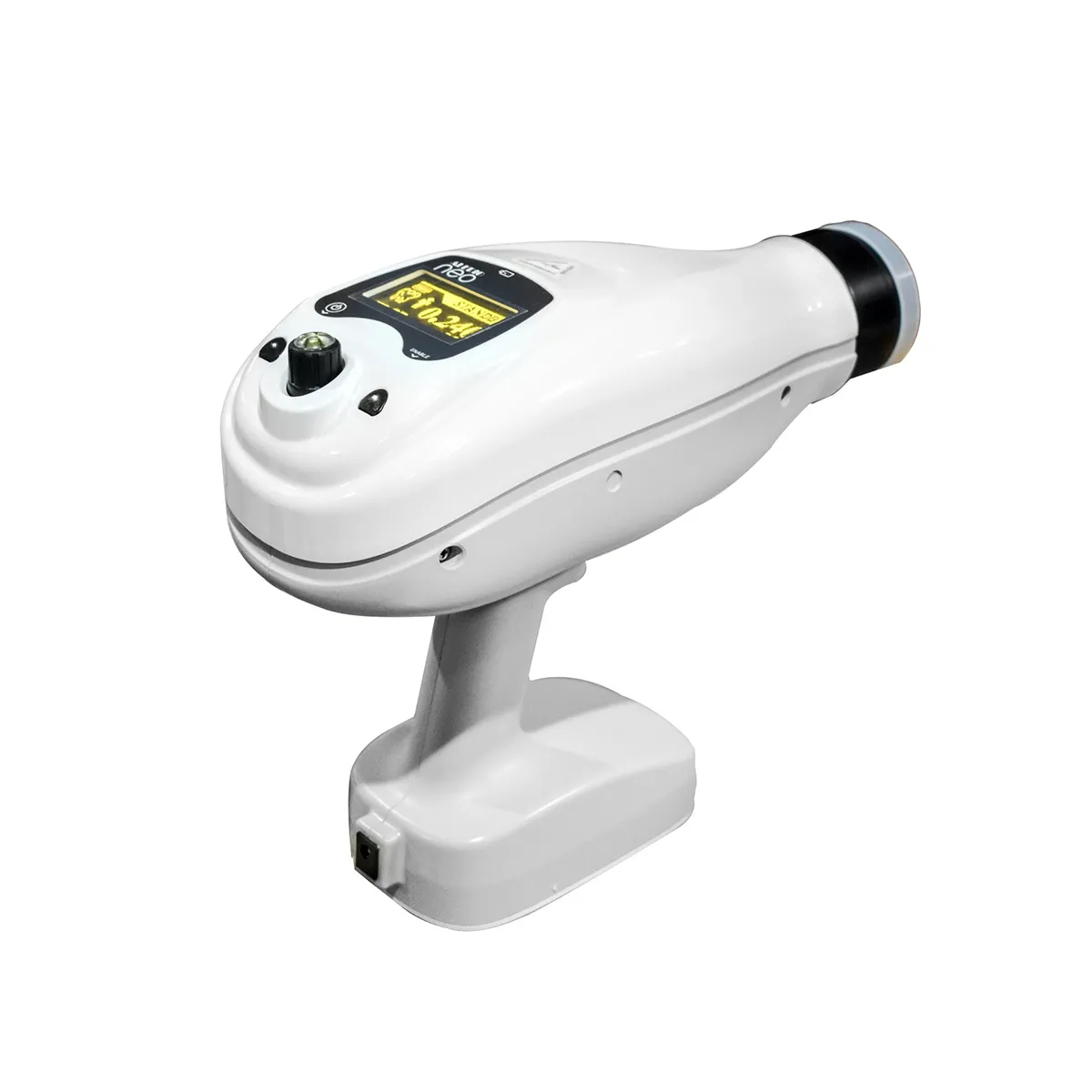

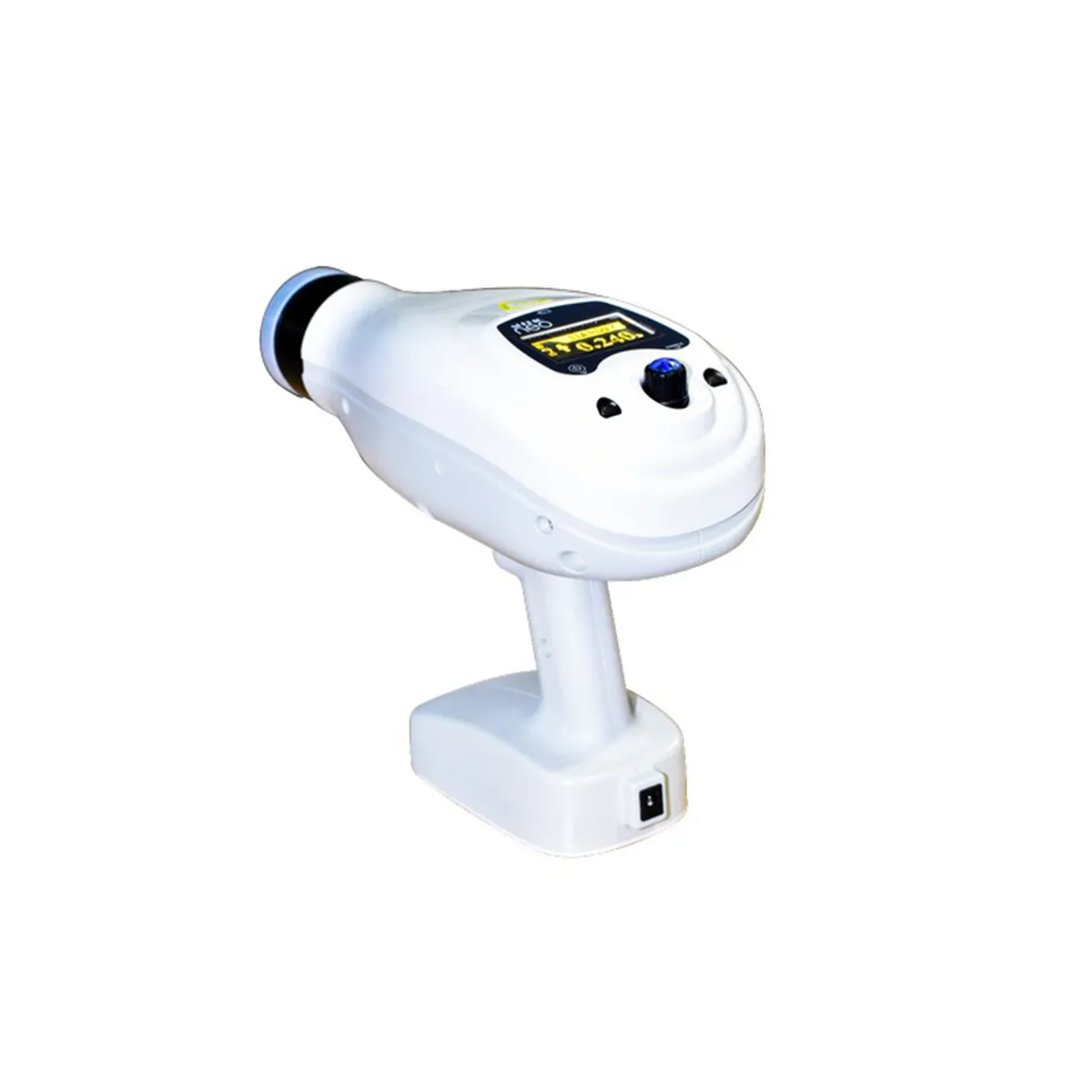

Alerio Neo Portable Dental X-Ray represents a pinnacle in modern dental imaging technology. Designed with a focus on convenience, safety, and superior imaging quality, this device offers a range of innovative features
Description
Air Plus Portable X-Ray Machine
Alerio Neo Portable Dental X-Ray represents a pinnacle in modern dental imaging technology. Designed with a focus on convenience, safety, and superior imaging quality, this device offers a range of innovative features. With its compact and portable design, the Alerio Neo allows for easy maneuverability within dental practices or during mobile procedures. Its ergonomic build ensures comfort for both the operator and the patient, facilitating efficient and stress-free imaging sessions. The inclusion of double shield technology, a lead-lined cone with scatter shield, and a new exposure algorithm exemplifies the commitment to user and patient safety. These features provide robust protection against radiation exposure, guaranteeing peace of mind during dental procedures.
Moreover, the Alerio Neo excels in image quality, thanks to its active dose control and fine focal point. This enables the production of high-resolution images essential for accurate diagnoses and treatment planning. Supported by local sales and service, the Alerio Neo Portable Dental X-Ray combines convenience, safety, and superior imaging capabilities, making it an indispensable tool for modern dental practices seeking efficiency and excellence.
Fratures:
Advanced Electronics Design
Lighter and Smaller Size
Powerful Heavy Duty Battery
Sensor, Film, PSP Compatible
Active Dose Control
Very Low Leakage Radiation
0.4mm Focal Spot
Specification :Â
TECHNICAL SPECIFICATIONS
Output:Â kV (DC)) Â 60 kV / 65 kV / 70 kV
Tube mA Â 2.3 mA
Exposure Time  0.01 s – 1.0 s
Focal Spot  0.4 mm IEC
Battery  Li-on Rechargeable
Cone Length  200 mm, Fixed
Filtration  >1.5 mm AI
Unit Weight  2.5 kg
Dimensions  308 mm x 247 mm x 133mm
Direction of Use:
Preparation:
Unpacking: Carefully unpack the Alerio Neo from its packaging, ensuring all components are present and undamaged.
Setup: Place the device on a stable surface in a suitable location within your dental practice. Ensure there is adequate space for operation and ventilation.
Power Connection: If necessary, connect the device to a power source or ensure the battery is fully charged before use.
Safety Precautions: Familiarize yourself with the safety features and precautions outlined in the user manual. Ensure the area surrounding the device is clear of obstacles.
Proper Usage:
Preparation: Prepare the patient for the X-ray procedure according to standard protocols. Position them appropriately and provide any necessary protective equipment.
Select Settings: Power on the Alerio Neo and select the desired settings for the X-ray procedure, including kV, mA, exposure time, and X-ray field size.
Positioning: Position the device and adjust the cone length to focus the X-ray beam on the target area. Ensure proper alignment with the patient’s anatomy.
Exposure: Activate the X-ray exposure according to the selected parameters. Follow recommended exposure times and safety protocols to minimize radiation exposure.
Image Capture: After exposure, review the captured image to ensure clarity and diagnostic quality. Repeat the procedure if necessary.
Post-procedure: Power off the device and properly store it in a secure location. Follow any recommended maintenance procedures outlined in the user manual.
Safety Tips:
Always wear appropriate protective gear, such as lead aprons and gloves, during X-ray procedures.
Ensure proper shielding and positioning to minimize radiation exposure to both the operator and the patient.
Adhere to recommended exposure times and techniques to avoid overexposure.
Regularly inspect the device for any signs of damage or malfunction and promptly address any issues.
